Digital Flexo Plate - Computer To Plate Directly
Digital Flexographic Plates deliver higher quality prints and increased productivity with excellent resolution and imaging capabilities for a wide range of substrates and applications. Ink transfer is enhanced to provide extremely smooth solids and crisp, clean runs.
Production Description:
Features:
1. Superior printing quality with sharper images, more open intermediate depths, finer highlight dots and less dot gain, i.e. larger range of tonal values therefore improved contrast and produce flat top dots when adequate process equipment are used.
2. High resilience and good resistance towards mechanical impacts deliver excellent durability.
3. Increased productivity and data transfer without loss of quality due to digital workflow.
4. Excellent ink transfer using water and alcohol-based inks.
5. Cost effective and more environmentally friendly in processing, as no film is required.
Applications:
Suitable for labels, tags, flexible packaging, sacks, folding carton, films and so on.
Specification:
Technical Data:
Thickness
(mm / inch) | Hardness
(Shore Å) | Total Range
(%) | Screen Ruling
(LPI) | Minimum Isolated Line
(mm) | Minimum Isolated Dot
(mm) |
| 1.14/0.045 | 75 | 1 - 98% | 175 | 0.1 | 0.15 |
| 1.70/0.067 | 67 | 1 - 98% | 175 | 0.1 | 0.15 |
| 1.70/0.067 | 55 | 2 - 95% | 150 | 0.1 | 0.15 |
Recommended Processing Conditions:
Thickness
(mm/ inch) | Back exposure
(seconds) | Main exposure
(mins) | Wash out
(mm/mins) | Dry
(hours) | Post exposure
(mins) | Detack
(mins) |
| 1.14/0.045 | 40-60 | 10-15 | 160-180 | 1.5-2 | 5 | 4 |
| 1.70/0.067 | 50-70 | 10-15 | 140-180 | 1.5-2 | 5 | 4 |
| 1.70/0.067 | 60-100 | 10-15 | 130-170 | 2-2.5 | 5 | 4 |
More Details:
Delivery and Package
Any kinds of transpotation are workable for us. Usually the departure port is Shanghai port or Ningbo port. The flexo plate is packed in carton and place in harizon. Pakced in pallet to avaoid any damaging or hurt.
|
|

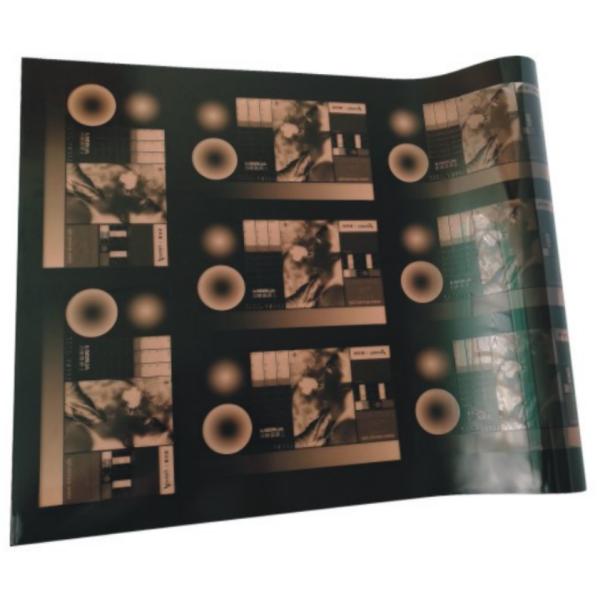

Flexible Digutal CTP Printing Plates For Carton Packaging And Labels Images
|
